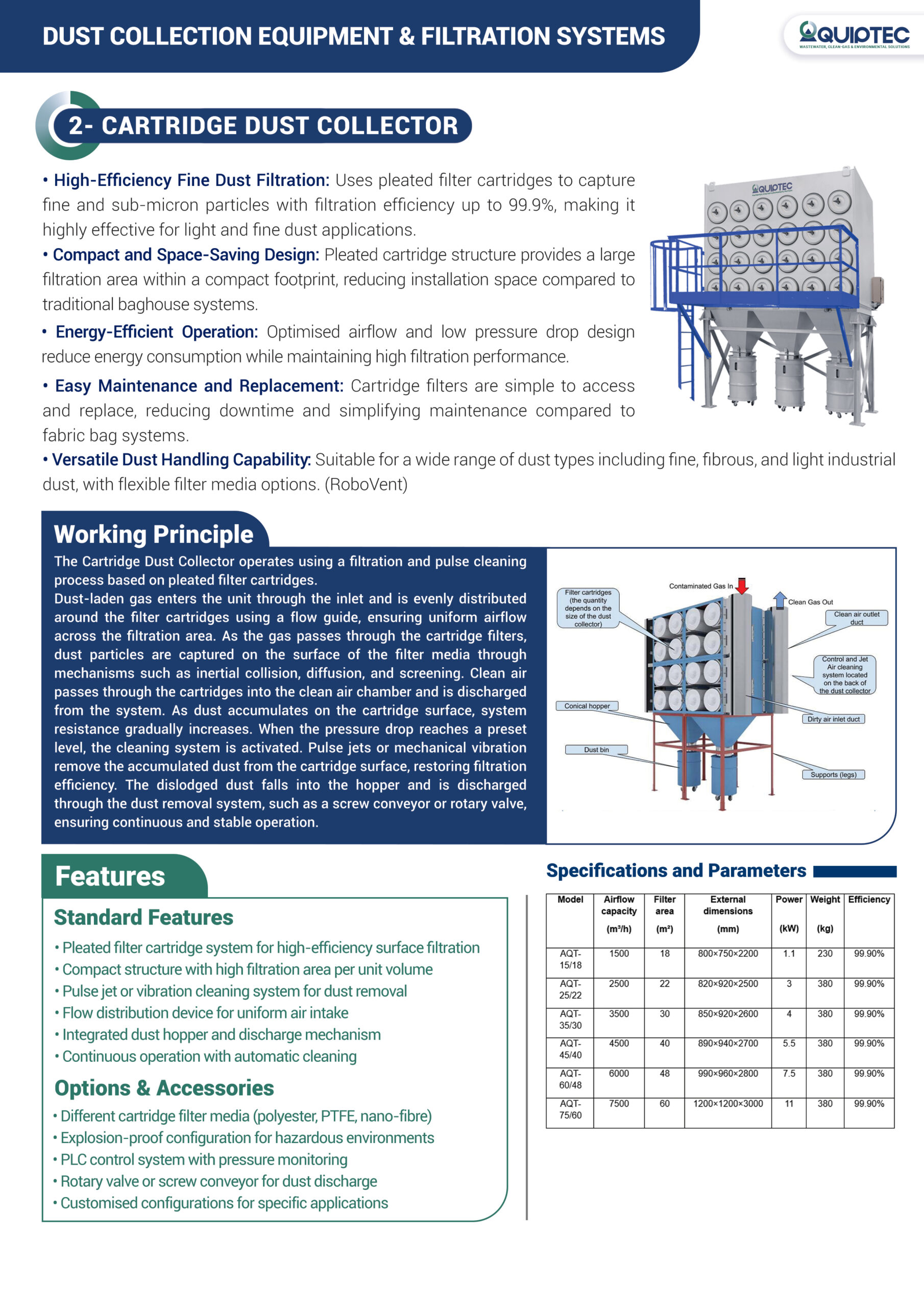

Cartridge Dust Collector
Cartridge Dust Collector
The cartridge dust collector is a system designed to capture very fine and even sub-micron dust particles. It uses pleated filter cartridges, which provide a large filtration area in a compact space. Dusty air passes through the cartridges, where particles are trapped, and clean air is released. A pulse cleaning system clears the dust from the filters, keeping the system running efficiently without stopping. It operates with low energy use and is easy to maintain, as the cartridges can be quickly replaced. Suitable for many industrial applications, it provides reliable and efficient dust control with flexible setup options.
| Model | Airflow capacity
(m³/h) |
Filter area
(m²) |
External dimensions
(mm) |
Power
(kW) |
Weight
(kg) |
Efficiency |
| AQT-15/18 | 1500 | 18 | 800×750×2200 | 1.1 | 230 | 99.90% |
| AQT-25/22 | 2500 | 22 | 820×920×2500 | 3 | 380 | 99.90% |
| AQT-35/30 | 3500 | 30 | 850×920×2600 | 4 | 380 | 99.90% |
| AQT-45/40 | 4500 | 40 | 890×940×2700 | 5.5 | 380 | 99.90% |
| AQT-60/48 | 6000 | 48 | 990×960×2800 | 7.5 | 380 | 99.90% |
| AQT-75/60 | 7500 | 60 | 1200×1200×3000 | 11 | 380 | 99.90% |
Features
Standard Features
- Pleated filter cartridge system for high-efficiency surface filtration
- Compact structure with high filtration area per unit volume
- Pulse jet or vibration cleaning system for dust removal
- Flow distribution device for uniform air intake
- Integrated dust hopper and discharge mechanism
- Continuous operation with automatic cleaning
Options & Accessories
- Different cartridge filter media (polyester, PTFE, nano-fibre)
- Explosion-proof configuration for hazardous environments
- PLC control system with pressure monitoring
- Rotary valve or screw conveyor for dust discharge
- Customised configurations for specific applications
Working Principle
The Cartridge Dust Collector operates using a filtration and pulse cleaning process based on pleated filter cartridges. Dust-laden gas enters the unit through the inlet and is evenly distributed around the filter cartridges using a flow guide, ensuring uniform airflow across the filtration area.
As the gas passes through the cartridge filters, dust particles are captured on the surface of the filter media through mechanisms such as inertial collision, diffusion, and screening. Clean air passes through the cartridges into the clean air chamber and is discharged from the system. As dust accumulates on the cartridge surface, system resistance gradually increases.
When the pressure drop reaches a preset level, the cleaning system is activated. Pulse jets or mechanical vibration remove the accumulated dust from the cartridge surface, restoring filtration efficiency. The dislodged dust falls into the hopper and is discharged through the dust removal system, such as a screw conveyor or rotary valve, ensuring continuous and stable operation.
Key Benefits
- High-Efficiency Fine Dust Filtration
Uses pleated filter cartridges to capture fine and sub-micron particles with filtration efficiency up to 99.9%, making it highly effective for light and fine dust applications. - Compact and Space-Saving Design
Pleated cartridge structure provides a large filtration area within a compact footprint, reducing installation space compared to traditional baghouse systems. - Energy-Efficient Operation
Optimised airflow and low-pressure drop design reduce energy consumption while maintaining high filtration performance. - Easy Maintenance and Replacement
Cartridge filters are simple to access and replace, reducing downtime and simplifying maintenance compared to fabric bag systems. - Versatile Dust Handling Capability
Suitable for a wide range of dust types, including fine, fibrous, and light industrial dust, with flexible filter media options. (RoboVent)
Key Benefits
- High-Efficiency Fine Dust Filtration
Uses pleated filter cartridges to capture fine and sub-micron particles with filtration efficiency up to 99.9%, making it highly effective for light and fine dust applications. - Compact and Space-Saving Design
Pleated cartridge structure provides a large filtration area within a compact footprint, reducing installation space compared to traditional baghouse systems. - Energy-Efficient Operation
Optimised airflow and low-pressure drop design reduce energy consumption while maintaining high filtration performance. - Easy Maintenance and Replacement
Cartridge filters are simple to access and replace, reducing downtime and simplifying maintenance compared to fabric bag systems. - Versatile Dust Handling Capability
Suitable for a wide range of dust types, including fine, fibrous, and light industrial dust, with flexible filter media options. (RoboVent)
Working Principle
The Cartridge Dust Collector operates using a filtration and pulse cleaning process based on pleated filter cartridges. Dust-laden gas enters the unit through the inlet and is evenly distributed around the filter cartridges using a flow guide, ensuring uniform airflow across the filtration area.
As the gas passes through the cartridge filters, dust particles are captured on the surface of the filter media through mechanisms such as inertial collision, diffusion, and screening. Clean air passes through the cartridges into the clean air chamber and is discharged from the system. As dust accumulates on the cartridge surface, system resistance gradually increases.
When the pressure drop reaches a preset level, the cleaning system is activated. Pulse jets or mechanical vibration remove the accumulated dust from the cartridge surface, restoring filtration efficiency. The dislodged dust falls into the hopper and is discharged through the dust removal system, such as a screw conveyor or rotary valve, ensuring continuous and stable operation.
Features
Standard Features
- Pleated filter cartridge system for high-efficiency surface filtration
- Compact structure with high filtration area per unit volume
- Pulse jet or vibration cleaning system for dust removal
- Flow distribution device for uniform air intake
- Integrated dust hopper and discharge mechanism
- Continuous operation with automatic cleaning
Options & Accessories
- Different cartridge filter media (polyester, PTFE, nano-fibre)
- Explosion-proof configuration for hazardous environments
- PLC control system with pressure monitoring
- Rotary valve or screw conveyor for dust discharge
- Customised configurations for specific applications
| Model | Airflow capacity
(m³/h) |
Filter area
(m²) |
External dimensions
(mm) |
Power
(kW) |
Weight
(kg) |
Efficiency |
| AQT-15/18 | 1500 | 18 | 800×750×2200 | 1.1 | 230 | 99.90% |
| AQT-25/22 | 2500 | 22 | 820×920×2500 | 3 | 380 | 99.90% |
| AQT-35/30 | 3500 | 30 | 850×920×2600 | 4 | 380 | 99.90% |
| AQT-45/40 | 4500 | 40 | 890×940×2700 | 5.5 | 380 | 99.90% |
| AQT-60/48 | 6000 | 48 | 990×960×2800 | 7.5 | 380 | 99.90% |
| AQT-75/60 | 7500 | 60 | 1200×1200×3000 | 11 | 380 | 99.90% |
