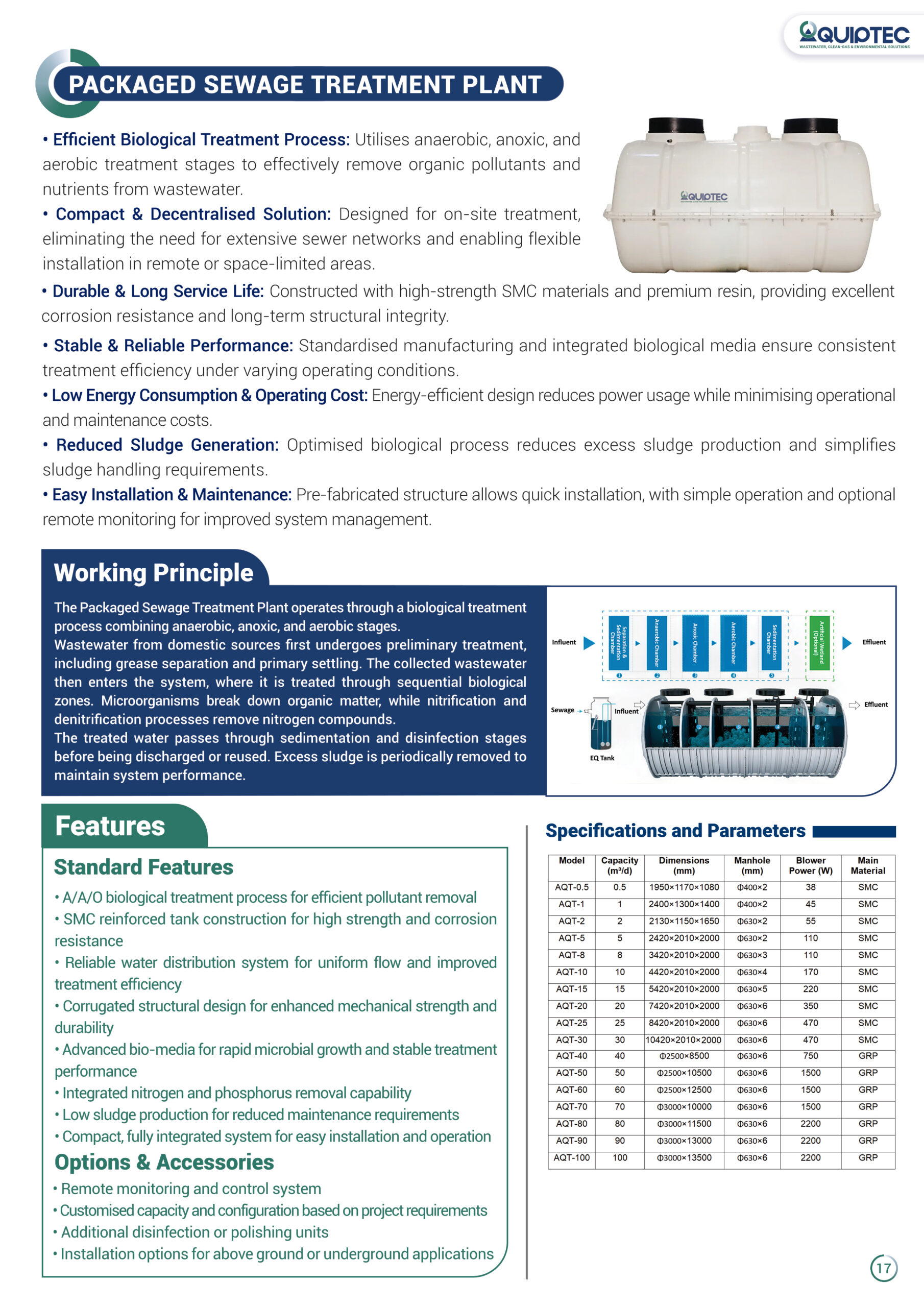

Packaged Sewage Treatment Plant
Packaged Sewage Treatment Plant
The packaged sewage treatment plant is a compact system designed for on-site wastewater treatment. It uses a biological process with anaerobic, anoxic, and aerobic stages to remove organic matter and nutrients. It provides stable and reliable performance while using little energy and producing less sludge. The durable SMC construction makes it long-lasting and resistant to corrosion. The Packaged Sewage Treatment Plant is pre-fabricated for easy installation and works well in remote or space-limited areas. With flexible configurations and optional monitoring, it offers a practical and efficient solution for decentralised wastewater treatment.
| Model | Capacity (m³/d) | Dimensions (mm) | Manhole (mm) | Blower Power (W) | Main Material |
| AQT-0.5 | 0.5 | 1950×1170×1080 | Φ400×2 | 38 | SMC |
| AQT-1 | 1 | 2400×1300×1400 | Φ400×2 | 45 | SMC |
| AQT-2 | 2 | 2130×1150×1650 | Φ630×2 | 55 | SMC |
| AQT-5 | 5 | 2420×2010×2000 | Φ630×2 | 110 | SMC |
| AQT-8 | 8 | 3420×2010×2000 | Φ630×3 | 110 | SMC |
| AQT-10 | 10 | 4420×2010×2000 | Φ630×4 | 170 | SMC |
| AQT-15 | 15 | 5420×2010×2000 | Φ630×5 | 220 | SMC |
| AQT-20 | 20 | 7420×2010×2000 | Φ630×6 | 350 | SMC |
| AQT-25 | 25 | 8420×2010×2000 | Φ630×6 | 470 | SMC |
| AQT-30 | 30 | 10420×2010×2000 | Φ630×6 | 470 | SMC |
| AQT-40 | 40 | Φ2500×8500 | Φ630×6 | 750 | GRP |
| AQT-50 | 50 | Φ2500×10500 | Φ630×6 | 1500 | GRP |
| AQT-60 | 60 | Φ2500×12500 | Φ630×6 | 1500 | GRP |
| AQT-70 | 70 | Φ3000×10000 | Φ630×6 | 1500 | GRP |
| AQT-80 | 80 | Φ3000×11500 | Φ630×6 | 2200 | GRP |
| AQT-90 | 90 | Φ3000×13000 | Φ630×6 | 2200 | GRP |
| AQT-100 | 100 | Φ3000×13500 | Φ630×6 | 2200 | GRP |
Features
Standard Features
- A/A/O biological treatment process for efficient pollutant removal
- SMC reinforced tank construction for high strength and corrosion resistance
- Patented water distribution system for uniform flow and improved treatment efficiency
- Corrugated structural design for enhanced mechanical strength and durability
- Advanced bio-media for rapid microbial growth and stable treatment performance
- Integrated nitrogen and phosphorus removal capability
- Low sludge production for reduced maintenance requirements
- Compact, fully integrated system for easy installation and operation
Options & Accessories
- Remote monitoring and control system
- Customised capacity and configuration based on project requirements
- Additional disinfection or polishing units
- Installation options for above-ground or underground applications
Working Principle
The Packaged Sewage Treatment Plant operates through a biological treatment process combining anaerobic, anoxic, and aerobic stages.
Wastewater from domestic sources first undergoes preliminary treatment, including grease separation and primary settling. The collected wastewater then enters the system, where it is treated through sequential biological zones. Microorganisms break down organic matter, while nitrification and denitrification processes remove nitrogen compounds.
The treated water passes through sedimentation and disinfection stages before being discharged or reused. Excess sludge is periodically removed to maintain system performance.
Key Benefits
- Efficient Biological Treatment Process
Utilises anaerobic, anoxic, and aerobic treatment stages to effectively remove organic pollutants and nutrients from wastewater. - Compact & Decentralised Solution
Designed for on-site treatment, eliminating the need for extensive sewer networks and enabling flexible installation in remote or space-limited areas. - Durable & Long Service Life
Constructed with high-strength SMC materials and premium resin, providing excellent corrosion resistance and long-term structural integrity. - Stable & Reliable Performance
Standardised manufacturing and integrated biological media ensure consistent treatment efficiency under varying operating conditions. - Low Energy Consumption & Operating Cost
Energy-efficient design reduces power usage while minimising operational and maintenance costs. - Reduced Sludge Generation
Optimised biological process reduces excess sludge production and simplifies sludge handling requirements. - Easy Installation & Maintenance
Pre-fabricated structure allows quick installation, with simple operation and optional remote monitoring for improved system management.
Key Benefits
- Efficient Biological Treatment Process
Utilises anaerobic, anoxic, and aerobic treatment stages to effectively remove organic pollutants and nutrients from wastewater. - Compact & Decentralised Solution
Designed for on-site treatment, eliminating the need for extensive sewer networks and enabling flexible installation in remote or space-limited areas. - Durable & Long Service Life
Constructed with high-strength SMC materials and premium resin, providing excellent corrosion resistance and long-term structural integrity. - Stable & Reliable Performance
Standardised manufacturing and integrated biological media ensure consistent treatment efficiency under varying operating conditions. - Low Energy Consumption & Operating Cost
Energy-efficient design reduces power usage while minimising operational and maintenance costs. - Reduced Sludge Generation
Optimised biological process reduces excess sludge production and simplifies sludge handling requirements. - Easy Installation & Maintenance
Pre-fabricated structure allows quick installation, with simple operation and optional remote monitoring for improved system management.
Working Principle
The Packaged Sewage Treatment Plant operates through a biological treatment process combining anaerobic, anoxic, and aerobic stages.
Wastewater from domestic sources first undergoes preliminary treatment, including grease separation and primary settling. The collected wastewater then enters the system, where it is treated through sequential biological zones. Microorganisms break down organic matter, while nitrification and denitrification processes remove nitrogen compounds.
The treated water passes through sedimentation and disinfection stages before being discharged or reused. Excess sludge is periodically removed to maintain system performance.
Features
Standard Features
- A/A/O biological treatment process for efficient pollutant removal
- SMC reinforced tank construction for high strength and corrosion resistance
- Patented water distribution system for uniform flow and improved treatment efficiency
- Corrugated structural design for enhanced mechanical strength and durability
- Advanced bio-media for rapid microbial growth and stable treatment performance
- Integrated nitrogen and phosphorus removal capability
- Low sludge production for reduced maintenance requirements
- Compact, fully integrated system for easy installation and operation
Options & Accessories
- Remote monitoring and control system
- Customised capacity and configuration based on project requirements
- Additional disinfection or polishing units
- Installation options for above-ground or underground applications
| Model | Capacity (m³/d) | Dimensions (mm) | Manhole (mm) | Blower Power (W) | Main Material |
| AQT-0.5 | 0.5 | 1950×1170×1080 | Φ400×2 | 38 | SMC |
| AQT-1 | 1 | 2400×1300×1400 | Φ400×2 | 45 | SMC |
| AQT-2 | 2 | 2130×1150×1650 | Φ630×2 | 55 | SMC |
| AQT-5 | 5 | 2420×2010×2000 | Φ630×2 | 110 | SMC |
| AQT-8 | 8 | 3420×2010×2000 | Φ630×3 | 110 | SMC |
| AQT-10 | 10 | 4420×2010×2000 | Φ630×4 | 170 | SMC |
| AQT-15 | 15 | 5420×2010×2000 | Φ630×5 | 220 | SMC |
| AQT-20 | 20 | 7420×2010×2000 | Φ630×6 | 350 | SMC |
| AQT-25 | 25 | 8420×2010×2000 | Φ630×6 | 470 | SMC |
| AQT-30 | 30 | 10420×2010×2000 | Φ630×6 | 470 | SMC |
| AQT-40 | 40 | Φ2500×8500 | Φ630×6 | 750 | GRP |
| AQT-50 | 50 | Φ2500×10500 | Φ630×6 | 1500 | GRP |
| AQT-60 | 60 | Φ2500×12500 | Φ630×6 | 1500 | GRP |
| AQT-70 | 70 | Φ3000×10000 | Φ630×6 | 1500 | GRP |
| AQT-80 | 80 | Φ3000×11500 | Φ630×6 | 2200 | GRP |
| AQT-90 | 90 | Φ3000×13000 | Φ630×6 | 2200 | GRP |
| AQT-100 | 100 | Φ3000×13500 | Φ630×6 | 2200 | GRP |
