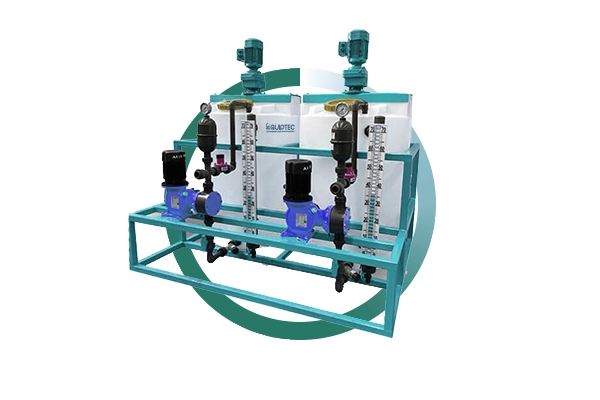

Chemical Preparation Unit
Chemical Preparation Unit
The chemical preparation unit is a compact system used for mixing and dosing chemicals. It combines mixing, dosing, and washing in one unit, making it simple and efficient. Water enters the tank, where the polymer is mixed to form a uniform solution. A dosing pump then feeds the chemical at a controlled rate. Made from corrosion-resistant PE, it is durable and suitable for harsh conditions. Its simple design makes it easy to install and maintain. Overall, it provides reliable and consistent chemical dosing for various industrial and water treatment applications.
| Model | Capacity (L/h) | Dimension
(mm) |
Power (kW) | Mixing Motor (kW) | Dosing Pump (kW) | ||
| L | W | H | |||||
| AQT-500L-PE-1 | 500 | 830 | 1410 | 1580 | 1 | 0.75 | 0.25 |
| AQT-500L-PE-2 | 1000 | 1660 | 1410 | 1580 | 2 | 0.75×2 | 0.25×2 |
| AQT-500L-PE-3 | 1500 | 2490 | 1410 | 1580 | 3 | 0.75×3 | 0.25×3 |
| AQT-1000L-PE-1 | 1000 | 1120 | 1720 | 1706 | 1 | 0.75 | 0.25 |
| AQT-1000L-PE-2 | 2000 | 2240 | 1720 | 1706 | 2 | 0.75×2 | 0.25×2 |
| AQT-1000L-PE-3 | 3000 | 3360 | 1720 | 1706 | 3 | 0.75×3 | 0.25×3 |
| AQT-2000L-PE-1 | 2000 | 1400 | 2000 | 2200 | 1.55 | 1.1 | 0.55 |
| AQT-2000L-PE-2 | 4000 | 2800 | 2000 | 2200 | 3.3 | 1.1×2 | 0.55×2 |
| AQT-2000L-PE-3 | 6000 | 4200 | 2000 | 2200 | 4.95 | 1.1 ×2 | 0.55×3 |
Features
Standard Features
- Integrated system including mixer, dosing pump, water inlet, and washing inlet
- PE dosing tank with high resistance to acid and alkali
- Mechanical metering pump with adjustable flow rate
- Stirring motor for uniform chemical mixing
- Simple and compact skid-mounted structure
- Stable operation with low maintenance requirements
Options & Accessories
- Manual or automatic control system
- Different pump head materials (PVC, PTFE, PVDF, 316 stainless steel)
- Customised tank volume (200 L to 2000 L)
- Adjustable mixer power and configuration
Working Principle
The Chemical Preparation Unit operates through a simple dosing and mixing process. Water enters the system through the inlet and is directed into the mixing tank. Polymer solution is prepared through mechanical stirring, ensuring uniform mixing and stable concentration. The prepared solution is then transferred through the dosing pump, which delivers the chemical at a controlled flow rate to the application system. Washing water is used to maintain system cleanliness and prevent clogging.
Key Benefits
- Simple and Cost-Effective Solution
Designed as a practical dosing system with low capital and operating cost, making it ideal for small-scale applications. - Integrated Dosing System
Combines mixing, dosing, water inlet, and washing functions in one compact unit for streamlined operation. - Reliable Chemical Dosing Performance
Ensures stable and consistent dosing through mechanical metering and controlled mixing processes. - Corrosion-Resistant Construction
Manufactured from high-quality PE material, offering strong resistance to acids, alkalis, and harsh chemical environments. - Compact and Space-Saving Design
Small footprint allows easy installation in limited spaces and skid-mounted systems. - Flexible Application Range
Suitable for various industrial and water treatment processes, including cooling water systems and chemical preparation. - Low Maintenance Requirements
Simple mechanical structure reduces maintenance needs and ensures long-term reliability.
Key Benefits
- Simple and Cost-Effective Solution
Designed as a practical dosing system with low capital and operating cost, making it ideal for small-scale applications. - Integrated Dosing System
Combines mixing, dosing, water inlet, and washing functions in one compact unit for streamlined operation. - Reliable Chemical Dosing Performance
Ensures stable and consistent dosing through mechanical metering and controlled mixing processes. - Corrosion-Resistant Construction
Manufactured from high-quality PE material, offering strong resistance to acids, alkalis, and harsh chemical environments. - Compact and Space-Saving Design
Small footprint allows easy installation in limited spaces and skid-mounted systems. - Flexible Application Range
Suitable for various industrial and water treatment processes, including cooling water systems and chemical preparation. - Low Maintenance Requirements
Simple mechanical structure reduces maintenance needs and ensures long-term reliability.
Working Principle
The Chemical Preparation Unit operates through a simple dosing and mixing process. Water enters the system through the inlet and is directed into the mixing tank. Polymer solution is prepared through mechanical stirring, ensuring uniform mixing and stable concentration. The prepared solution is then transferred through the dosing pump, which delivers the chemical at a controlled flow rate to the application system. Washing water is used to maintain system cleanliness and prevent clogging.
Features
Standard Features
- Integrated system including mixer, dosing pump, water inlet, and washing inlet
- PE dosing tank with high resistance to acid and alkali
- Mechanical metering pump with adjustable flow rate
- Stirring motor for uniform chemical mixing
- Simple and compact skid-mounted structure
- Stable operation with low maintenance requirements
Options & Accessories
- Manual or automatic control system
- Different pump head materials (PVC, PTFE, PVDF, 316 stainless steel)
- Customised tank volume (200 L to 2000 L)
- Adjustable mixer power and configuration
| Model | Capacity (L/h) | Dimension
(mm) |
Power (kW) | Mixing Motor (kW) | Dosing Pump (kW) | ||
| L | W | H | |||||
| AQT-500L-PE-1 | 500 | 830 | 1410 | 1580 | 1 | 0.75 | 0.25 |
| AQT-500L-PE-2 | 1000 | 1660 | 1410 | 1580 | 2 | 0.75×2 | 0.25×2 |
| AQT-500L-PE-3 | 1500 | 2490 | 1410 | 1580 | 3 | 0.75×3 | 0.25×3 |
| AQT-1000L-PE-1 | 1000 | 1120 | 1720 | 1706 | 1 | 0.75 | 0.25 |
| AQT-1000L-PE-2 | 2000 | 2240 | 1720 | 1706 | 2 | 0.75×2 | 0.25×2 |
| AQT-1000L-PE-3 | 3000 | 3360 | 1720 | 1706 | 3 | 0.75×3 | 0.25×3 |
| AQT-2000L-PE-1 | 2000 | 1400 | 2000 | 2200 | 1.55 | 1.1 | 0.55 |
| AQT-2000L-PE-2 | 4000 | 2800 | 2000 | 2200 | 3.3 | 1.1×2 | 0.55×2 |
| AQT-2000L-PE-3 | 6000 | 4200 | 2000 | 2200 | 4.95 | 1.1 ×2 | 0.55×3 |
