Linear Motion Shale Shaker
Linear Motion Shale Shaker

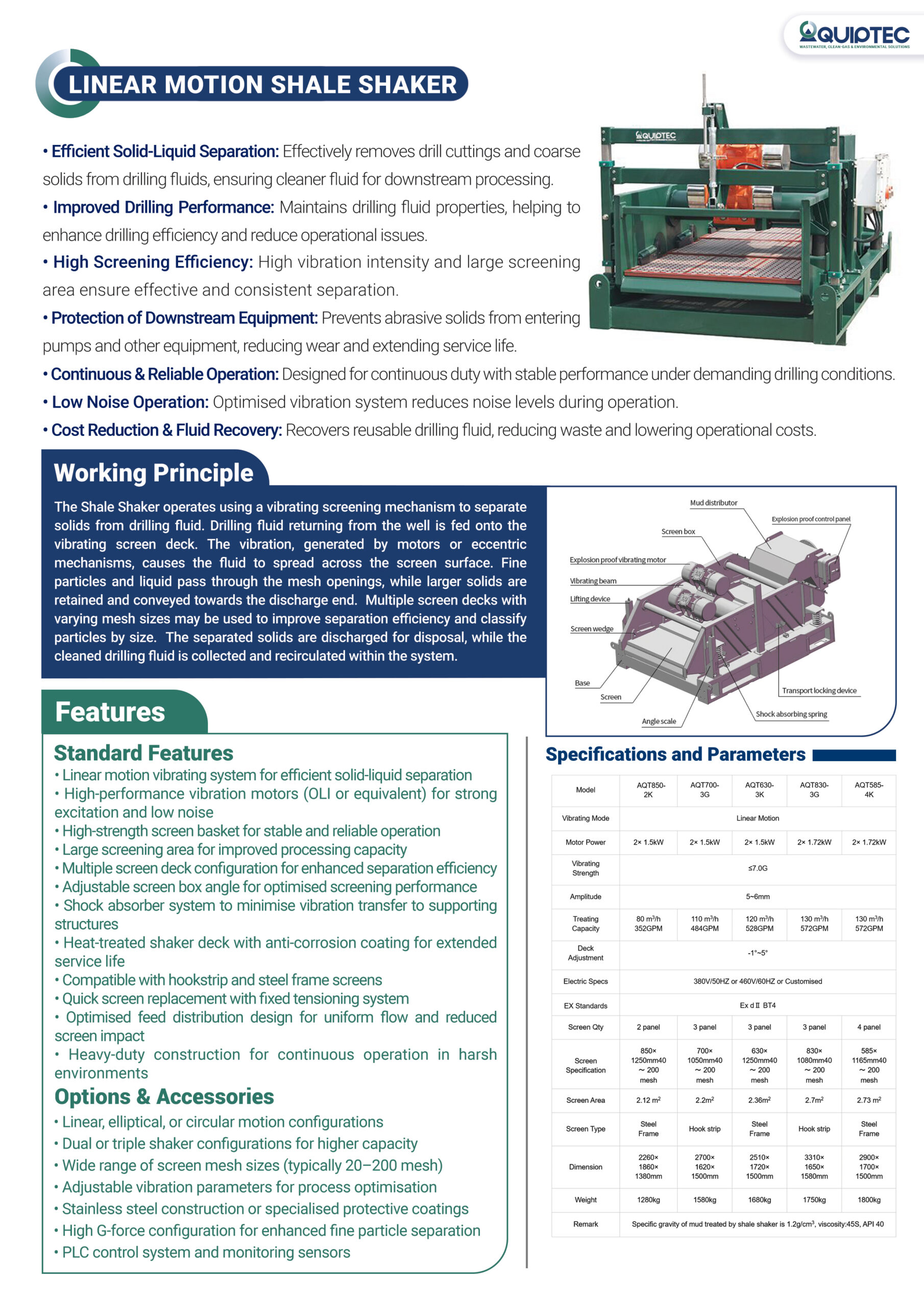

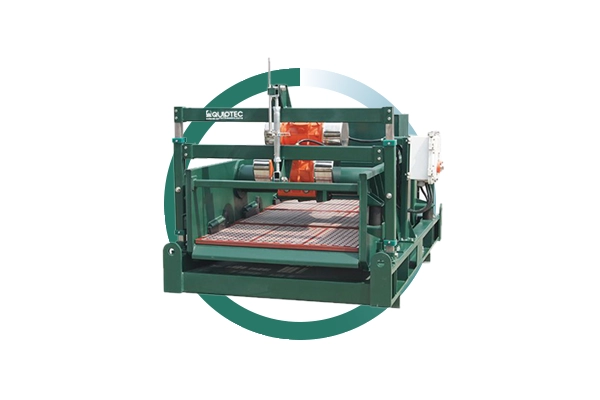

The Linear Motion Shale Shaker is used to separate solids from drilling fluids. It uses a vibrating screen to remove drill cuttings and larger particles, keeping the fluid clean and ready for reuse. Its linear motion creates strong, steady vibration, allowing it to work efficiently even in tough conditions. This helps protect downstream equipment from wear and reduces maintenance costs. With a large screening area, adjustable angle, and multi-deck options, it can handle higher volumes of material. Overall, it improves drilling efficiency, reduces waste, and provides a reliable and cost-effective solution for fluid recovery.
| Model | AQT850-2K | AQT700-3G | AQT630-3K | AQT830-3G | AQT585-4K |
| Vibrating Mode | Linear Motion | ||||
| Motor Power | 2× 1.5kW | 2× 1.5kW | 2× 1.5kW | 2× 1.72kW | 2× 1.72kW |
| Vibrating Strength | ≤7.0G | ||||
| Amplitude | 5~6mm | ||||
| Treating Capacity | 80 m3/h 352GPM |
110 m3/h 484GPM |
120 m3/h 528GPM |
130 m3/h 572GPM |
130 m3/h 572GPM |
| Deck Adjustment | -1°~5° | ||||
| Electric Specs | 380V/50HZ or 460V/60HZ or Customised | ||||
| EX Standards | Ex dⅡ BT4 | ||||
| Screen Qty | 2 panel | 3 panel | 3 panel | 3 panel | 4 panel |
| Screen Specification | 850× 1250mm40 ～ 200 mesh | 700× 1050mm40 ～ 200 mesh | 630× 1250mm40 ～ 200 mesh | 830× 1080mm40 ～ 200 mesh | 585× 1165mm40 ～ 200 mesh |
| Screen Area | 2.12 m2 | 2.2m2 | 2.36m2 | 2.7m2 | 2.73 m2 |
| Screen Type | Steel Frame | Hook strip | Steel Frame | Hook strip | Steel Frame |
| Dimension | 2260× 1860× 1380mm | 2700× 1620× 1500mm | 2510× 1720× 1500mm | 3310× 1650× 1580mm | 2900× 1700× 1500mm |
| Weight | 1280kg | 1580kg | 1680kg | 1750kg | 1800kg |
| Remark | Specific gravity of mud treated by shale shaker is 1.2g/cm3, viscosity:45S, API 40 | ||||
Features
Standard Features
- Linear motion vibrating system for efficient solid-liquid separation
- High-performance vibration motors (OLI or equivalent) for strong excitation and low noise
- High-strength screen basket for stable and reliable operation
- Large screening area for improved processing capacity
- Multiple screen deck configuration for enhanced separation efficiency
- Adjustable screen box angle for optimised screening performance
- Shock absorber system to minimise vibration transfer to supporting structures
- Heat-treated shaker deck with anti-corrosion coating for extended service life
- Compatible with hookstrip and steel frame screens
- Quick screen replacement with a fixed tensioning system
- Optimised feed distribution design for uniform flow and reduced screen impact
- Heavy-duty construction for continuous operation in harsh environments
Options & Accessories
- Linear, elliptical, or circular motion configurations
- Dual or triple shaker configurations for higher capacity
- Wide range of screen mesh sizes (typically 20–200 mesh)
- Adjustable vibration parameters for process optimisation
- Stainless steel construction or specialised protective coatings
- High G-force configuration for enhanced fine particle separation
- PLC control system and monitoring sensors
Working Principle
The Shale Shaker operates using a vibrating screening mechanism to separate solids from drilling fluid. Drilling fluid returning from the well is fed onto the vibrating screen deck. The vibration, generated by motors or eccentric mechanisms, causes the fluid to spread across the screen surface. Fine particles and liquid pass through the mesh openings, while larger solids are retained and conveyed towards the discharge end. Multiple screen decks with varying mesh sizes may be used to improve separation efficiency and classify particles by size. The separated solids are discharged for disposal, while the cleaned drilling fluid is collected and recirculated within the system.
Key Benefits
- Efficient Solid-Liquid Separation
Effectively removes drill cuttings and coarse solids from drilling fluids, ensuring cleaner fluid for downstream processing. - Improved Drilling Performance
Maintains drilling fluid properties, helping to enhance drilling efficiency and reduce operational issues. - High Screening Efficiency
High vibration intensity and large screening area ensure effective and consistent separation. - Protection of Downstream Equipment
Prevents abrasive solids from entering pumps and other equipment, reducing wear and extending service life. - Continuous & Reliable Operation
Designed for continuous duty with stable performance under demanding drilling conditions. - Low Noise Operation
Optimised vibration system reduces noise levels during operation. - Cost Reduction & Fluid Recovery
Recovers reusable drilling fluid, reducing waste and lowering operational costs. (KESMI)
Key Benefits
- Efficient Solid-Liquid Separation
Effectively removes drill cuttings and coarse solids from drilling fluids, ensuring cleaner fluid for downstream processing. - Improved Drilling Performance
Maintains drilling fluid properties, helping to enhance drilling efficiency and reduce operational issues. - High Screening Efficiency
High vibration intensity and large screening area ensure effective and consistent separation. - Protection of Downstream Equipment
Prevents abrasive solids from entering pumps and other equipment, reducing wear and extending service life. - Continuous & Reliable Operation
Designed for continuous duty with stable performance under demanding drilling conditions. - Low Noise Operation
Optimised vibration system reduces noise levels during operation. - Cost Reduction & Fluid Recovery
Recovers reusable drilling fluid, reducing waste and lowering operational costs. (KESMI)
Working Principle
The Shale Shaker operates using a vibrating screening mechanism to separate solids from drilling fluid. Drilling fluid returning from the well is fed onto the vibrating screen deck. The vibration, generated by motors or eccentric mechanisms, causes the fluid to spread across the screen surface. Fine particles and liquid pass through the mesh openings, while larger solids are retained and conveyed towards the discharge end. Multiple screen decks with varying mesh sizes may be used to improve separation efficiency and classify particles by size. The separated solids are discharged for disposal, while the cleaned drilling fluid is collected and recirculated within the system.
Features
Standard Features
- Linear motion vibrating system for efficient solid-liquid separation
- High-performance vibration motors (OLI or equivalent) for strong excitation and low noise
- High-strength screen basket for stable and reliable operation
- Large screening area for improved processing capacity
- Multiple screen deck configuration for enhanced separation efficiency
- Adjustable screen box angle for optimised screening performance
- Shock absorber system to minimise vibration transfer to supporting structures
- Heat-treated shaker deck with anti-corrosion coating for extended service life
- Compatible with hookstrip and steel frame screens
- Quick screen replacement with a fixed tensioning system
- Optimised feed distribution design for uniform flow and reduced screen impact
- Heavy-duty construction for continuous operation in harsh environments
Options & Accessories
- Linear, elliptical, or circular motion configurations
- Dual or triple shaker configurations for higher capacity
- Wide range of screen mesh sizes (typically 20–200 mesh)
- Adjustable vibration parameters for process optimisation
- Stainless steel construction or specialised protective coatings
- High G-force configuration for enhanced fine particle separation
- PLC control system and monitoring sensors
| Model | AQT850-2K | AQT700-3G | AQT630-3K | AQT830-3G | AQT585-4K |
| Vibrating Mode | Linear Motion | ||||
| Motor Power | 2× 1.5kW | 2× 1.5kW | 2× 1.5kW | 2× 1.72kW | 2× 1.72kW |
| Vibrating Strength | ≤7.0G | ||||
| Amplitude | 5~6mm | ||||
| Treating Capacity | 80 m3/h 352GPM |
110 m3/h 484GPM |
120 m3/h 528GPM |
130 m3/h 572GPM |
130 m3/h 572GPM |
| Deck Adjustment | -1°~5° | ||||
| Electric Specs | 380V/50HZ or 460V/60HZ or Customised | ||||
| EX Standards | Ex dⅡ BT4 | ||||
| Screen Qty | 2 panel | 3 panel | 3 panel | 3 panel | 4 panel |
| Screen Specification | 850× 1250mm40 ～ 200 mesh | 700× 1050mm40 ～ 200 mesh | 630× 1250mm40 ～ 200 mesh | 830× 1080mm40 ～ 200 mesh | 585× 1165mm40 ～ 200 mesh |
| Screen Area | 2.12 m2 | 2.2m2 | 2.36m2 | 2.7m2 | 2.73 m2 |
| Screen Type | Steel Frame | Hook strip | Steel Frame | Hook strip | Steel Frame |
| Dimension | 2260× 1860× 1380mm | 2700× 1620× 1500mm | 2510× 1720× 1500mm | 3310× 1650× 1580mm | 2900× 1700× 1500mm |
| Weight | 1280kg | 1580kg | 1680kg | 1750kg | 1800kg |
| Remark | Specific gravity of mud treated by shale shaker is 1.2g/cm3, viscosity:45S, API 40 | ||||
